Create a new state

You can create three types of State nodes in your State Graphs: Script States, Any States, and Super States. For more information on the types of State nodes, see State Graphs in Graphs.

Create a Script State

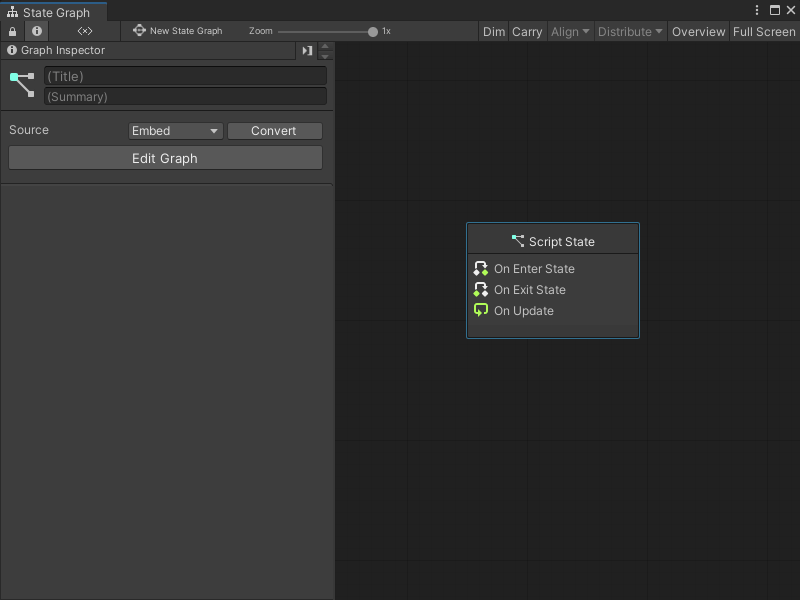

To create a new blank Script State:

1. With a State Graph open in the Graph window, right-click on an empty space in the Graph Editor to open the context menu. For more information on creating State Graphs, see Creating a new graph file.

2. From the context menu, select Create Script State. Visual Scripting creates a new Script State node.

3. In the Graph Inspector, choose a source for your new Script State's Script Graph:

   • Embed: The graph only exists on the Script State node. You can only modify the graph from the node in its parent State Graph.
   • Graph: The graph exists in a separate file. You can modify the graph outside of its parent State Graph and reuse the graph in other areas of your application.

   [!TIP] If the Graph Inspector isn't visible in the Graph window, select Graph Inspector () from the toolbar.

4. If you chose Graph, select New, enter a name for your graph file, and choose where you want to save it. Select Save.

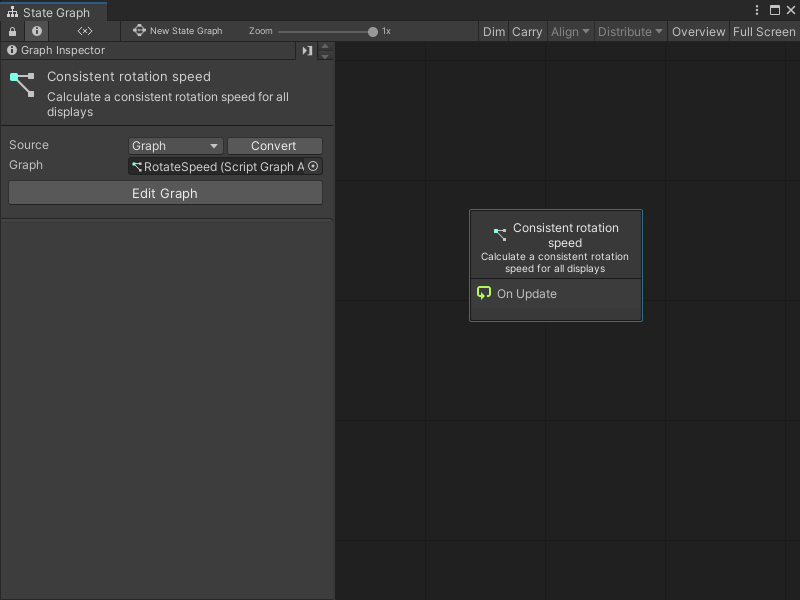

To create a Script State from an existing Script Graph:

1. With a State Graph open in the Graph window, right-click on an empty space in the Graph Editor to open the context menu. For more information on creating State Graphs, see Creating a new graph file.

2. From the context menu, select Create Script State. Visual Scripting creates a new Script State node.

3. In the Graph Inspector, set your Source to Graph.

   [!TIP] If the Graph Inspector isn't visible in the Graph window, select Graph Inspector () from the toolbar.

4. In the Graph field, select the target icon and choose a compatible Script Graph from your project. You can also click and drag a Script Graph file from your Project window and drop it into the Graph field.

[!TIP] For a faster way to add a Script Graph as a Script State, click and drag the Script Graph from your Project window into the Graph Editor to automatically create a Script State node.

Create an Any State

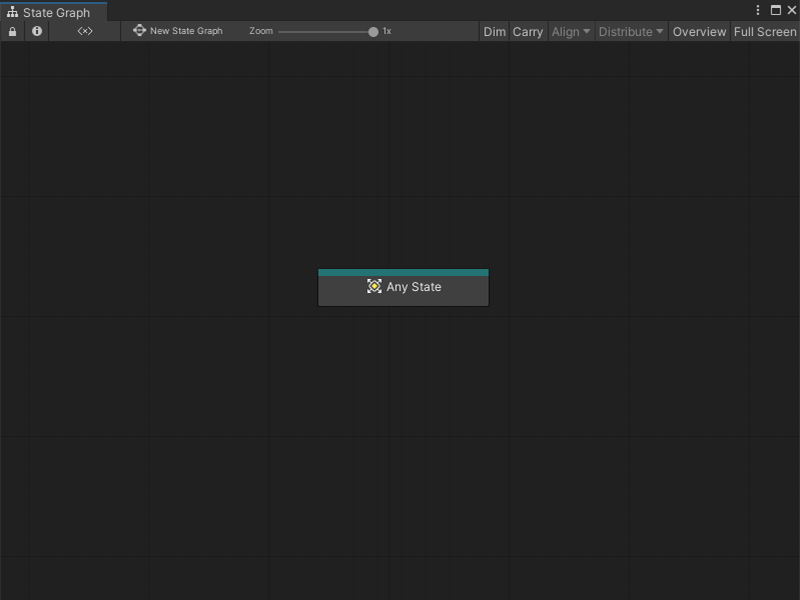

To create a new Any State node:

1. With a State Graph open in the Graph window, right-click on an empty space in the Graph Editor to open the context menu. For more information on creating State Graphs, see Creating a new graph file.

2. From the context menu, select Create Any State.

Create a Super State

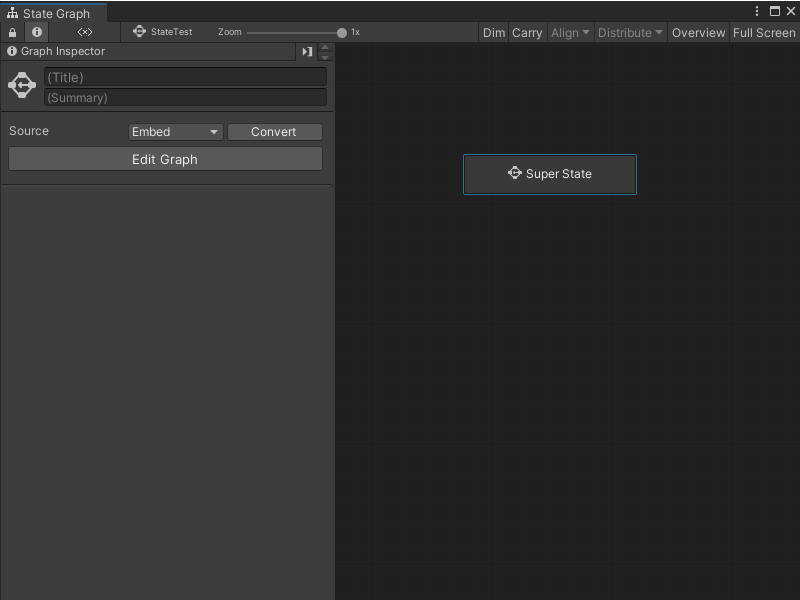

To create a new blank Super State:

1. With a State Graph open in the Graph window, right-click on an empty space in the Graph Editor to open the context menu. For more information on creating State Graphs, see Creating a new graph file.

2. From the context menu, select Create Super State. Visual Scripting creates a new Super State node.

3. In the Graph Inspector, choose a source for your new Super State's State Graph:

   • Embed: The graph only exists on the Super State node. You can only modify the graph from the node in its parent State Graph.
   • Graph: The graph exists in a separate file. You can modify the graph outside of its parent State Graph and reuse the graph in other areas of your application.

   [!TIP] If the Graph Inspector isn't visible in the Graph window, select Graph Inspector () from the toolbar.

4. If you chose Graph, select New, enter a name for your graph file, and choose where you want to save it. Select Save.

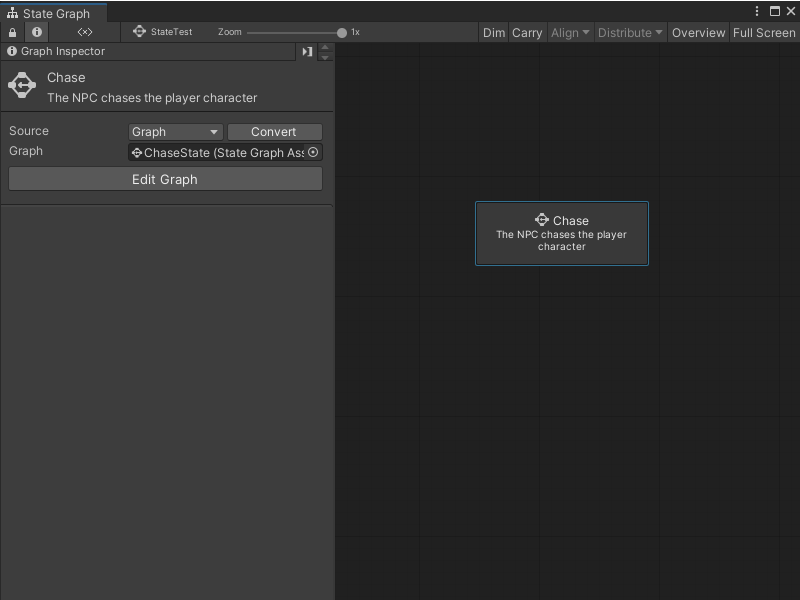

To create a Super State from an existing State Graph:

1. With a State Graph open in the Graph window, right-click on an empty space in the Graph Editor to open the context menu. For more information on creating State Graphs, see Creating a new graph file.

2. From the context menu, select Create Super State. Visual Scripting creates a new Super State node.

3. In the Graph Inspector, set your Source to Graph.

   [!TIP] If the Graph Inspector isn't visible in the Graph window, select Graph Inspector () from the toolbar.

4. In the Graph field, select the target icon and choose a compatible State Graph from your project. You can also click and drag a State Graph file from your Project window and drop it into the Graph field.

[!TIP] For a faster way to add a State Graph as a Super State, click and drag the State Graph from your Project window into the Graph Editor to automatically create a Super State node.
