Create a node group

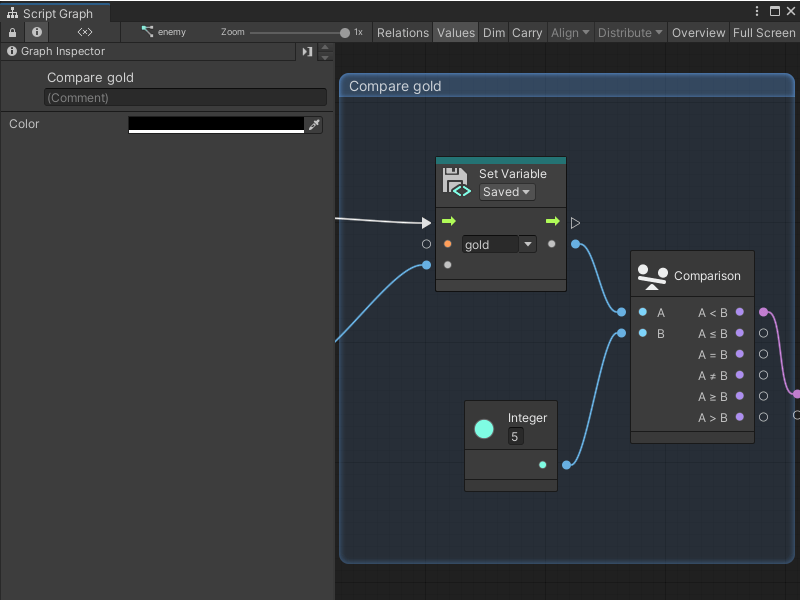

You can group nodes together in your graphs to help keep things organized.
To create a new group:
-
With a graph open in the Graph window, start in an empty area. Click and hold CTRL (macOS: Cmd + click) and drag to create a selection around the nodes you want to include in your new group. Release to finish creating the group.
-
(Optional) Click Group in the group's header to edit its name. Press Enter to save your changes.
-
(Optional) In the Graph Inspector, in the (Comment) field, enter any comments or information you want about your group. The comment is only visible in the Inspector.
[!TIP] If the Graph Inspector isn't visible in the Graph window, select Graph Inspector (
) from the toolbar. -
(Optional) In the Graph Inspector, select the Color field to open the color picker and select a new color for your group. When not selected, your group appears as this color. You can also select the eyedropper icon to choose a color from somewhere on your screen.
-
(Optional) To resize the group, click and drag from any edge or corner. To move the group and its nodes, click the group's header and drag.
[!NOTE] You can also move your group without moving any of the nodes inside, but the required input changes depending on your chosen control scheme. For more information, see Choosing a Visual Scripting control scheme
Next steps
After you've created a node group, you can add nodes to your Script Graph, create and add variables, or add a Subgraph.
